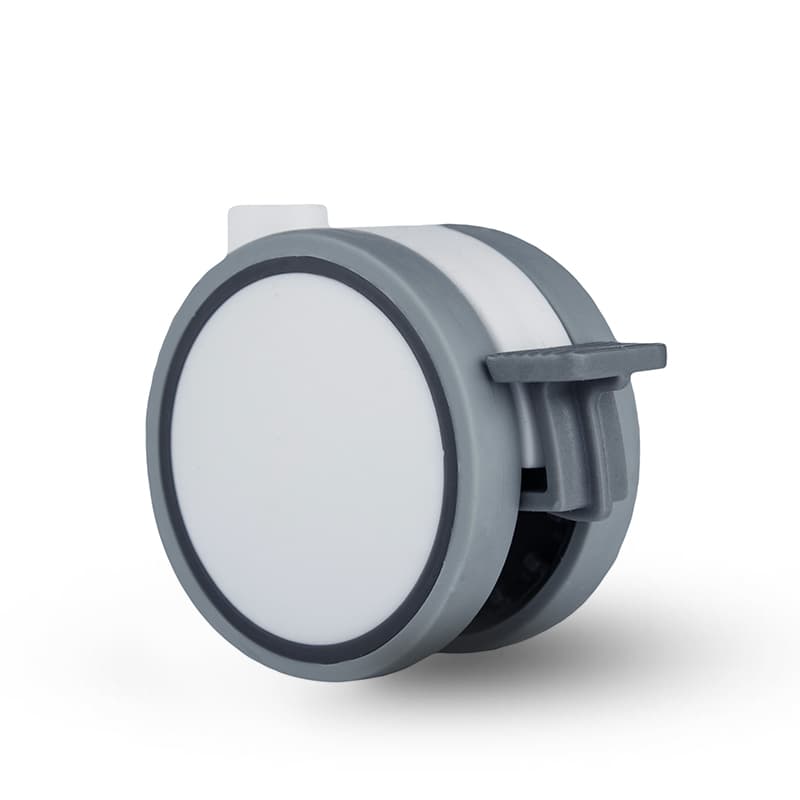

Emma Caster

35mm50mm60mm75mm100mm

Key Attributes

Product Diameter

35mm / 50mm / 60mm / 75mm / 100mm

Material Description

Metal Chrome Bracket, Transparent PU Edge

Application Range

Home Spaces, Medical Spaces, Light Industrial Scenes

Product Standard

EN12528

Resources

Data Sheet

Download Link

Buy Link

Buy Link

Specifications

Plate

EMMA 艾玛

	100	75	60	50	35
	124.5	97	78.5	64	50.5
	38.5	38.5	38.5	34.5	34.5
FITTING	60x60x2	60x60x2	60x60x2	42x42x2	42x42x2
	76	80	60	50	40
BEARING
	Download File	Download File	Download File	Download File	Download File

			FITTING		BEARING
100	124.5	38.5	60x60x2	76		Download File
75	97	38.5	60x60x2	80		Download File
60	78.5	38.5	60x60x2	60		Download File
50	64	34.5	42x42x2	50		Download File
35	50.5	34.5	42x42x2	40		Download File

Stem

EMMA 艾玛

	75	50
	97	64
	38.5	34.5
FITTING	60x60x2	42x42x2
	80	50
BEARING
	Download File	Download File

			FITTING		BEARING
75	97	38.5	60x60x2	80		Download File
50	64	34.5	42x42x2	50		Download File

Bolt Hole

EMMA 艾玛

	100	75	60	50	35
	128	99.5	81.5	67	54.5
	38.5	38.5	38.5	34.5	34.5
FITTING	M10x15	M10x15	M10x15	M8x15	M8x15
	76	80	60	50	40
BEARING
	Download File	Download File	Download File	Download File	Download File

			FITTING		BEARING
100	128	38.5	M10x15	76		Download File
75	99.5	38.5	M10x15	80		Download File
60	81.5	38.5	M10x15	60		Download File
50	67	34.5	M8x15	50		Download File
35	54.5	34.5	M8x15	40		Download File

Threaded Stem

EMMA 艾玛

	75	50
	99.5	67
	38.5	34.5
FITTING	M10x15	M8x15
	80	50
BEARING
	Download File	Download File

			FITTING		BEARING
75	99.5	38.5	M10x15	80		Download File
50	67	34.5	M8x15	50		Download File

Specification

EMMA 艾玛

	100	75	60	50	35
	124.5	97	79	64	50.5
	38.5	38.5	38.5	34.5	34.5
FITTING	Ø8	Ø8	Ø8	Ø8	Ø8
	76	80	60	50	40
BEARING
	Download File	Download File	Download File	Download File	Download File

			FITTING		BEARING
100	124.5	38.5	Ø8	76		Download File
75	97	38.5	Ø8	80		Download File
60	79	38.5	Ø8	60		Download File
50	64	34.5	Ø8	50		Download File
35	50.5	34.5	Ø8	40		Download File

Specification 6

EMMA 艾玛

	75	50
	97	64
	38.5	34.5
FITTING	Ø8	Ø8
	80	50
BEARING
	Download File	Download File

			FITTING		BEARING
75	97	38.5	Ø8	80		Download File
50	64	34.5	Ø8	50		Download File

Specification 7

EMMA 艾玛

	75	60	50	35
	97	78.5	64.5	50.5
	33	38.5	28.5	32
FITTING	64x60x2	64x60x2	21x21x1	45x26x1
	64	48	40	32
BEARING
	Download File	Download File	Download File	Download File

			FITTING		BEARING
75	97	33	64x60x2	64		Download File
60	78.5	38.5	64x60x2	48		Download File
50	64.5	28.5	21x21x1	40		Download File
35	50.5	32	45x26x1	32		Download File

Specification 8

EMMA 艾玛

	75	50
	97	64.5
	33	28.5
FITTING	64602	42421
	64	40
BEARING
	Download File	Download File

			FITTING		BEARING
75	97	33	64602	64		Download File
50	64.5	28.5	42421	40		Download File
